Premium EV Charging Solutions

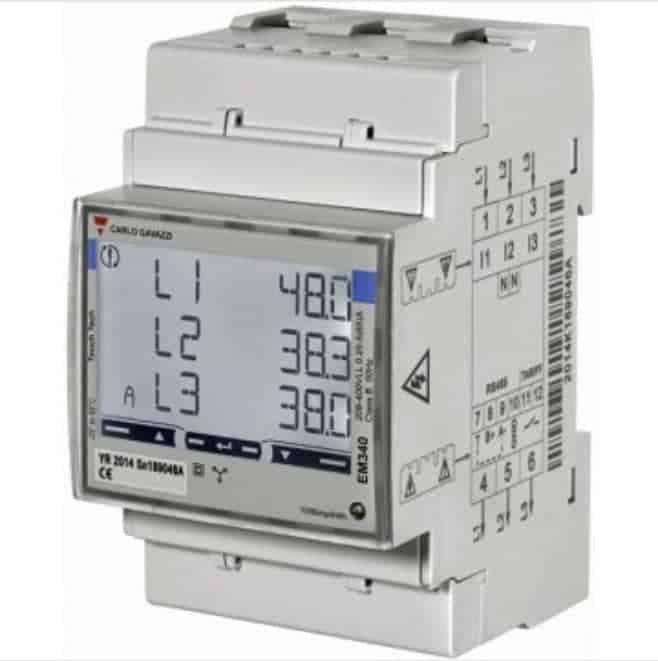

Wallbox Smart Meter Carlo Gavazzi EM340 MID GENERAL DATA:
|
Width
|
53,8 mm |
|---|---|
|
Height
|
90 mm |
|
Depth
|
63 mm |
| Housing | DIN-Rail (IP51) |
| Weight | 1 kg |
| Current Range | 5 (65)A |
| Connection cross section, current path | 1-16mm² |
| Communication | ModBus RS485 |
| Current Type | 3 Phase load, direct connection |
| I/O | 1 Digital input, 1 Pulse output (As standard) |
| Consumption | Self-powered |
| Display | 3x8DGT |
| IP rate | IP51 |
Wallbox Smart Meter Carlo Gavazzi EM340 MID energy meter analyzer with backlit LCD display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up to 65 A (direct connection), with dual tariff management availability. It can measure imported and exported energy or be programmed to consider only the imported one. Housing for DIN-rail mounting, with IP51 front degree protection. The meter is optionally provided with pulse output proportional to the active energy being measured, RS485 Modbus port or M-bus port.
Certified according to MID Directive, Annex “B” + Annex “D” or Annex “B” + Annex “F” for legal metrology relevant to active electrical energy meters. Can be used for fiscal (legal) metrology.
Compatible with: Wallbox Pulsar, Wallbox Copper, Wallbox Commander
| Brand | Wallbox |
|---|---|
| Connector | Cable Type 2 |
