Premium EV Charging Solutions

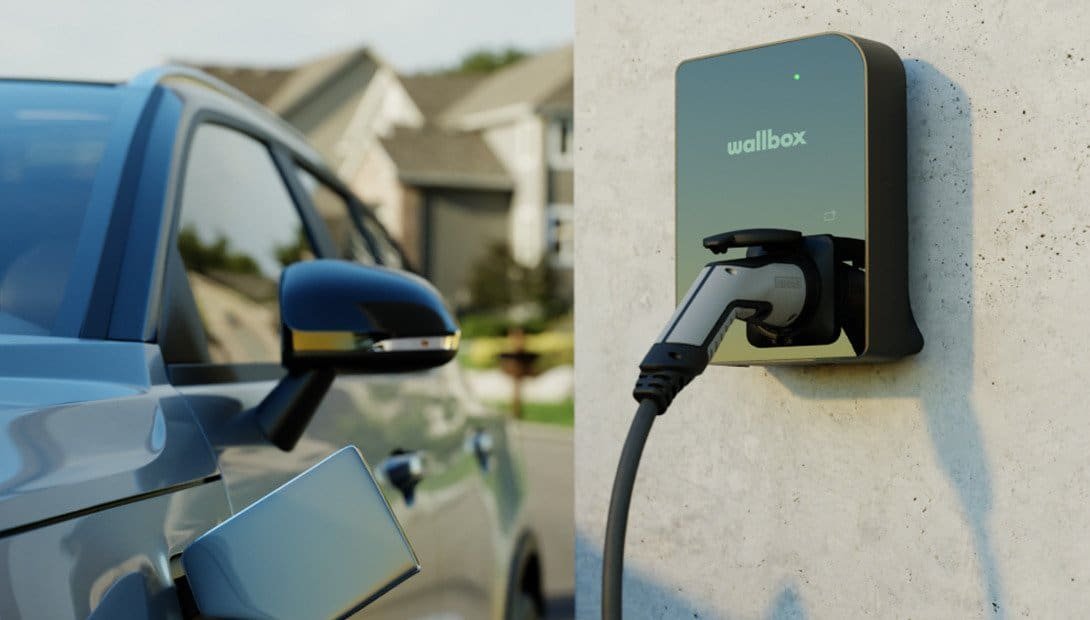

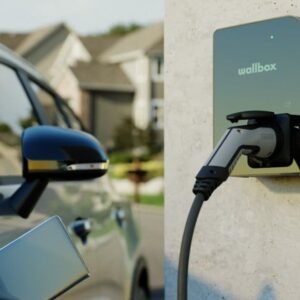

Wallbox Copper 22 kW SB EV charging station is intelligent charging station with display for electric vehicles and plug-in hybrids. This station can be connect to “myWallbox” charging management platform using Wi-Fi or Bluetooth. This compact and cost-effective solution, features the most advanced technology to provide maximum charging performance. With the Wallbox Copper SB is easy to adapt to any installation and is ideal for use in private garages or shared parking. Compatible with all Type 2 electric vehicles.
Wallbox Copper design is sleek with display for best user experience, and features the most advanced technology to provide the maximum charging performance. Copper adapts to any installation, in private garages or shared parking and can be used for public charging.

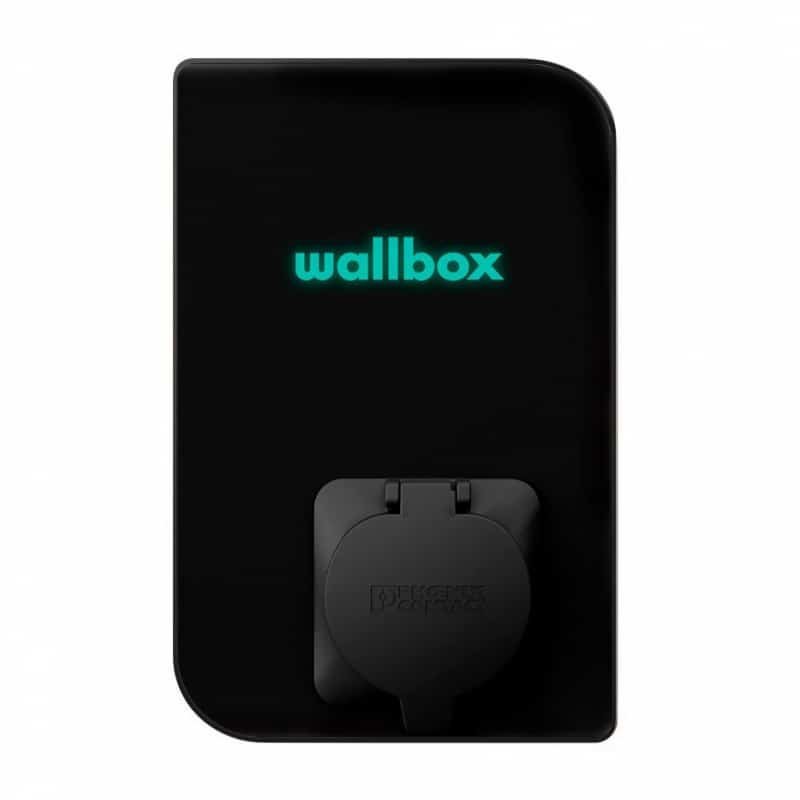

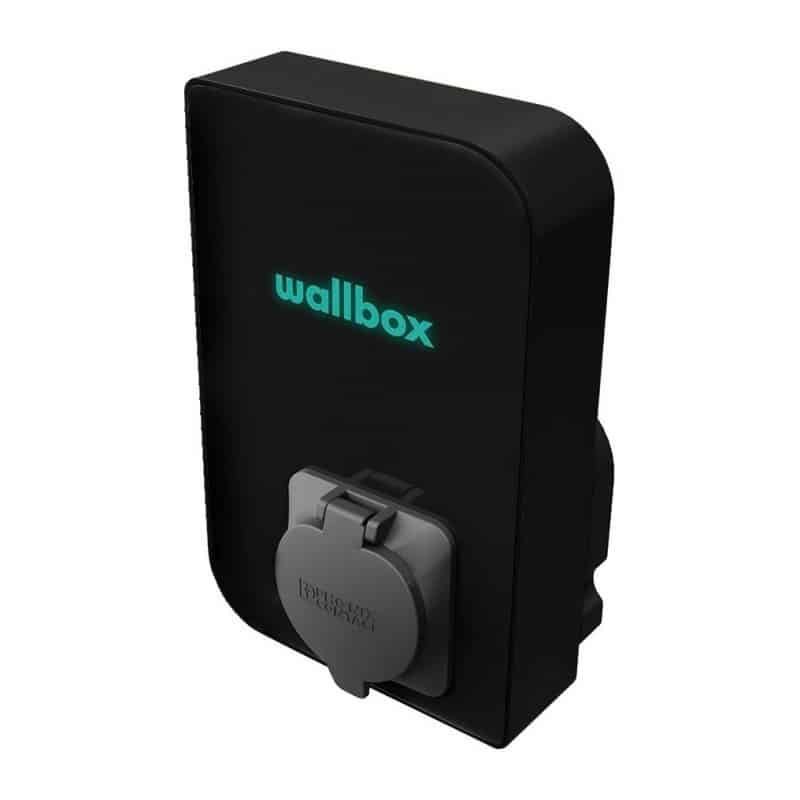

WallBox Copper 22 kW, Type 2 socket
Key Features:
- Socket connector is universally accepted by all IEC 62196-2 Type 2 plug-in vehicles.
- The authentication of multiple users can be done through both RFID and the app.
- Balancing charging power across chargers thanks to Power Sharing Smart.
- The station is always connected via Ethernet, WiFi or Bluetooth.
- Up to 22kW.
- Integrated DC leakage protection.
- Protection rating IP54 / IK08.
- Standards IEC 61851-1, IEC 61851-22, IEC 62196-2.
- Beautifully designed and manufactured, this product will make a real statement for your company.
My Wallbox App and webdashboard:
| Brand | Wallbox |
|---|---|
| Brand and Model | Wallbox Copper |
| Power (kW) | 22 |
| Phases | 3 phases |
| Communication | WiFi |
| Dimensions | L191 x H259 mm x P88,5 |
| Input voltage | 230V AC ± 10% (1P) / 400V AC ± 10% (3P) |
| Connector | Socket- Type 2 |
| Integrated Cable | Type 2 socket |
| Charging schedule | Yes |
| Dynamic Power balancing | Yes, with Carlo Gavazzi EM340 SmartMeter |
| OCPP ready | Yes |
| Smart control via | App |
| Operating Temperature | -25ºC to +40ºC |
| RFID | Yes |
| Warranty | 24 months |
