Premium EV Charging Solutions
EVB203E-BLBC
[ux_video url=”https://www.youtube.com/watch?v=wKRpdvzjL4k”]
FEATURES:
Smart solutions put your business first
- Save money with future-proof Smart EV services
- Compatible with cloud-based remote management of your charging stations.
Safety
- RCB – Residual Current Breaker installed inside station
- MCB – Miniature circuit breakers installed inside station. MCB prevents damage to an electrical circuit as a result of excess current.
- Cable auto unlock function in case of power cut off
Ideal for any environment
- Powerful single or dual charging
- Low lifecycle costs
- Low installation cost (possibility to mount on wall)
- Suitable to be used in harsh environments- both indoors or outdoor
- Perfect for retailers, fleets, car parks, and more
Value from elegance and durability
- Stylish Scandinavian design to support your brand
- High-quality industrial components with a robust steel structure
- Fully compliant with European regulations
Enjoy a user-friendly experience with ENSTO EVB203-BLB
- Plug a cable & charge or effortless and secure user identification with RFID or via App.
PLEASE CONTACT FOR OTHER MODEL VARIATION:
| Version with no RCB or MCB: | |
| EVB200-ALB | 2x22kW, IP54, IK10, LAN, Type2, RCMB 6 mA, ISO15118 (V2X) |
| EVB200-A4B | 2x22kW, IP54, IK10, 4G, Type2, RCMB 6 mA, ISO15118 (V2X) |
| With automatic cable unlock: | |
| EVB200-BLB | 2x22kW, IP54, IK10, LAN, Type2, RCMB 6 mA, ISO15118 (V2X) |
| EVB200-B4B | 2x22kW, IP54, IK10, 4G, Type2, RCMB 6 mA, ISO15118 (V2X) |
| EVB203 version – with RCD + MCB & automatic cable unlock | |
| EVB203-BLB | 2x22kW, IP54, IK10, LAN, RCD + MCB, Type2, RCMB 6 mA, ISO15118 (V2X) |
| EVB203E with expansion box, including RCD + MCB + MID kWh meter & automatic cable unlock | |
| EVB203E-BLBC | 2x22kW, IP54, IK10, LAN, RCD + MCB, Type2, RCMB 6 mA, 2 x MID, ISO15118 (V2X) |
| EVB203E-B4BC | 2x22kW, IP54, IK10, 4G, RCD + MCB, Type2, RCMB 6 mA, 2 x MID, ISO15118 (V2X) |
| Brand | Ensto |
|---|---|
| Power (kW) | 22 |
| Number of sockets | 2 |
| Socket | Mode 3—IEC 62196 (Type 2) |
| Number of plugs | 0 |
| Phases | 1 phase, 2 phases, 3 phases |
| Energy Meter | By separate order |
| LED Status Indication | Integrated |
| Operational temperature | -30 °C to +50 °C |
| Degree of protection | IP54 |
| Impact resistance | IK10 |
| UV resistant | Yes |
| Certificate | CE |
| Charging cable locking | Yes |
| Controller protection | Integrated – MCB (MINIATURE CIRCUIT BREAKER) |
| Current leakage detection | Integrated – 6MA DC residual |
| Weight | 14 kg |

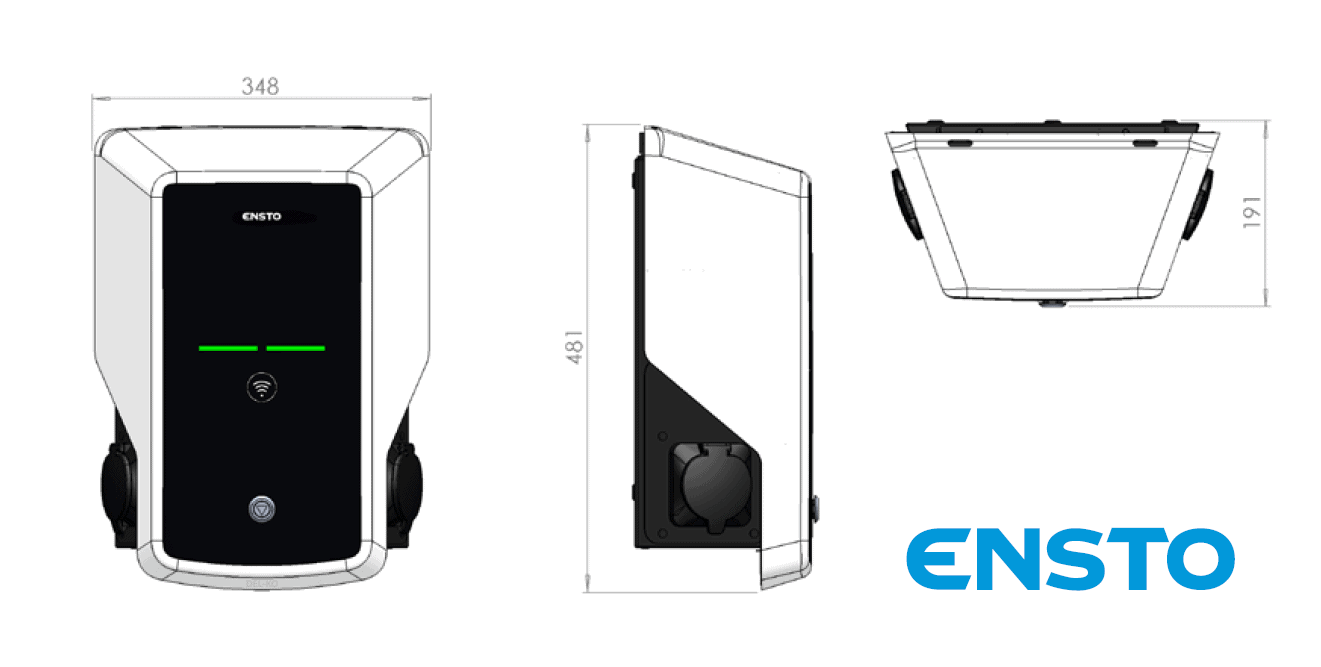

| Dimensions ( Width x Height x Depth ) | 191 x 481 x 348 mm |
| Manufacturer | ENSTO (Finland) |
| Mounting | Wall mounting. Ground mounting when ordering with pole. |
| Brand and Model | Ensto EVB |
| Communication | WiFi |
| OCPP ready | No |
| Charging schedule | Yes |
| Dynamic Power balancing | Yes |
| RFID | No |
| Smart control via | App |
| Warranty | 36 months |
