Premium EV Charging Solutions

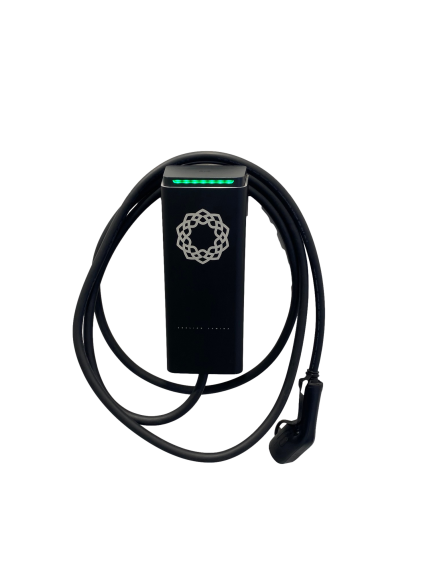

ENELION LUMINA 22kW ALU Type2 cable
Modular EV charging station with minimalist design and very unique construction. Slim design of Enelion Lumina station will adapt to any surrounding environment. Whereas smart features will suit customer requirements. Unique product — for many challenges and expectations.
ENELION LUMINA 22kW ALU Key Features:
- Housing: Anodised aluminium / black
- Powerful & reliable charging
- Height / Width / Depth: 390 mm / 155 mm / 133mm
- Always connected via: Dedicated application connecting to the station via WiFi AP 2.4 GHz b/g/n or Integrated LTE/4G modem
- Status indicator in the form of a coloured LED bar;
- OCCP: Communication protocol compliance OCPP 1.6 JSON over WebSockets
- Robust design – IP54 / IK10 rated for use indoors or outdoors
- Controlled by the Enelion app
- Integrated charging status lights.
TECHNICAL SPECIFICATION
- Charging power: 22kW 3x32A (Three phase)
- Cable: 5m, Tethered
- Colour: black
- Charging Mode (IEC 61851-1): Mode 3
- Weight: 7.4.kg (with cable)
- Connector: Type 2
- Energy meter: Integrated 3-phase energy meter ~99% reading accuracy
- Built-in RFID/NFC reader — Mifare Classic / Free Charge Mode
- Additional feature: Built-in Enelion RCMB 6 mA DC residual current protection
By connecting the additional Enelion Energy Guard, it will be possible to balance the power consumption between the charger and your home devices.
| Brand | Enelion |
|---|---|
| Power (kW) | 22 |
| Phases | 3 phases |
| Communication | WiFi, Wifi/4G |
| Number of plugs | 1 |
| Plug | Type 2 |
| Weight | 7.5 kg |
| Dimensions | 390x155x133 mm |
| Operating temperature | -25 °C to 45 °C |
| Cable Lenght | 5 meter |
| Input voltage | 230V AC ± 10% (1P) / 400V AC ± 10% (3P) |
| Brand and Model | Enelion Lumina |
| Connector | Cable Type 2 |
| Integrated Cable | Type 2 cable |
| Charging schedule | Yes |
| Dynamic Power balancing | Yes, with Enelion Energy Guard |
| OCPP ready | Yes |
| Operating Temperature | -30˚C to 40˚C |
| RFID | Yes |
| Smart control via | App |
| Warranty | 24 months |
