Premium EV Charging Solutions

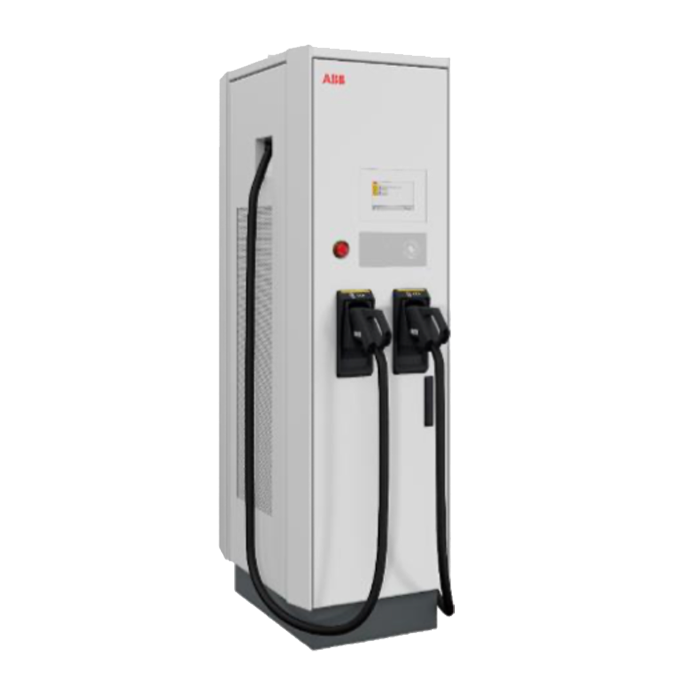

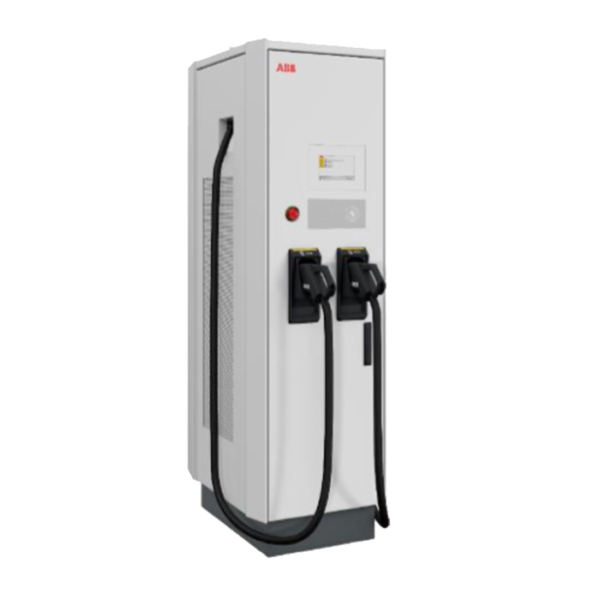

ABB Terra DC 124 model (6AGC084253 – Terra CE 124 CC 4N4-7M-H-0 Terra 124HC CC CE)
- ABB Terra DC 124 model charging station supports CCS2 DC standart
- 120kW (max.) DC Output power
- Possibility to charge one car with max. 120kW DC or two cars with each max. 60kW DC at the same time.
- 400A 3.9m CCS-2 cable & connector + max. 400A 3.9m CCS-2 second cable & connector.
- Future-proof design for use at petrol stations, office buildings or retail locations
- Designed to maintain unrestricted output power over the entire lifespan
- Visualisation of the entire charging process on the touchscreen display
- RFID authorisation function available
- Robust stainless steel housing
Applications:
– Highway petrol/service station operators
– Busy urban areas / shopping malls / offices
– Commercial fleet operators
– EV Infrastructure operators and service providers
– EV dealers and importers
Delivery time: 6 month
| Brand | ABB |
|---|---|
| Communication | Mobile data (3G/4G), OCPP 1.6 |
| Number of plugs | 3 |
| Number of sockets | 0 |
| Phases | 1 phase, 3 phases |
| Power (kW) | 120 |
| Dimensions | 565 x 780 x 1900 mm |
| Temperature | -35 'C to +55 'C (de-rating characteristics apply) |
| Certificates | CE, EMC Class B |
| Display | 7 inch touchscreen |
| Impact resistance | IK08 |
| Weight (gross) | 370kg |
| Integrated Cable | Type 2 cable |
| Charging schedule | Yes |
| Connector | Cable Type 2 |
| Dynamic Power balancing | Yes |
| OCPP ready | Yes |
| Operating Temperature | -30°C to 55°C |
| RFID | Yes |
| Smart control via | App, web Dashboard |
| Warranty | 24 months |
